Commercial Energy Storage System
All-In-One
The All-In-One is a fully-integrated commercial battery energy storage cabinet — hybrid inverter, lithium battery modules, BMS, fire suppression and thermal management in one outdoor enclosure. Available in two configurations: 30 kW / 64.3 kWh and 50 kW / 112.5 kWh. Manufactured by Solinteg. Co-engineered, supplied and supported in Australia by AERL.
Download resources
Loading 3D view…
Key features
Inverter, Battery & BMS Pre-Integrated
A factory-built outdoor cabinet that pairs a transformerless hybrid inverter, battery modules and BMS — pre-wired, pre-commissioned and ready for site connection.
Two Commercial Configurations
Available in two configurations: 30 kW / 64.3 kWh and 50 kW / 112.5 kWh.
Built-In Safety & Thermal Management
Integrated fire-suppression, active thermal management and IP55 outdoor enclosure remove the need for separate cabinet design and reduce site installation effort.
Product walkthrough

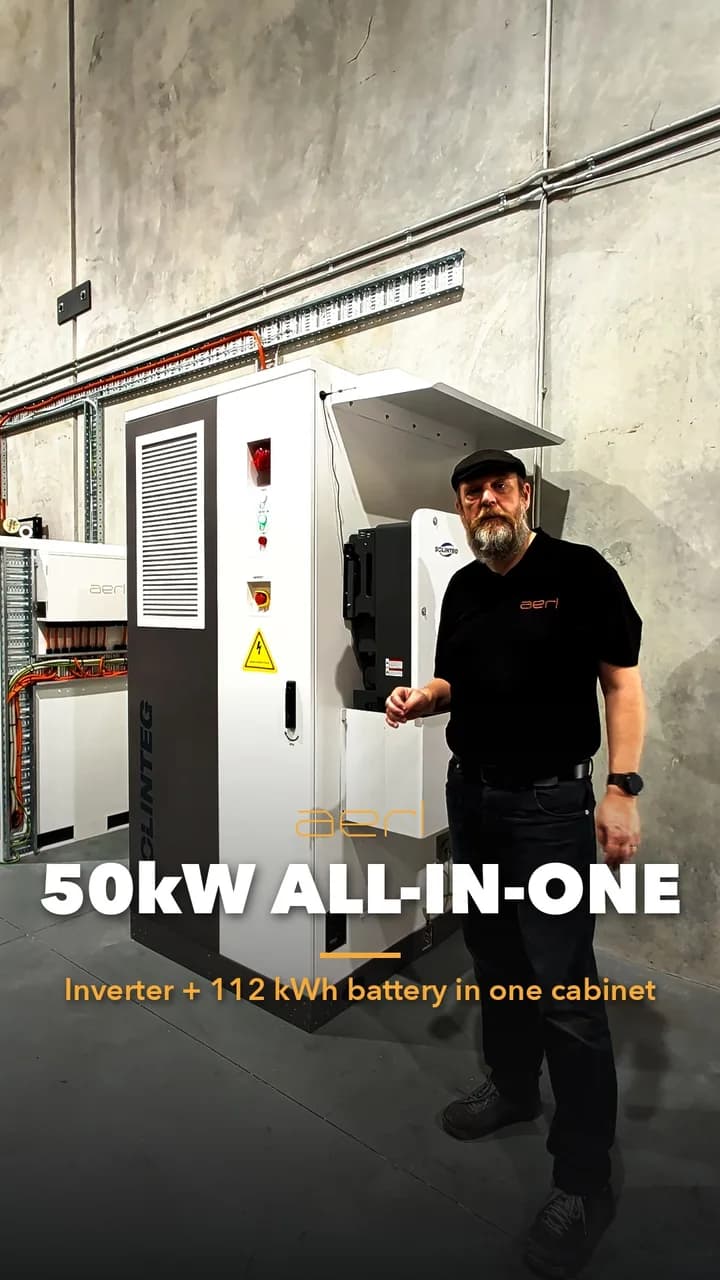

AERL CTO Jeremy Whaley walks through the 50 kW / 112.5 kWh All-In-One: the safety features on the outside, then inside the cabinet at everything that comes pre-installed.
Chapters
Technical specifications
Key features
- Inverter, lithium battery and BMS in a single outdoor cabinet
- 30 kW / 64.3 kWh
- 50 kW / 112.5 kWh
- 4 MPPTs, 200–950 V, up to 200% PV oversizing
- Sub-10 ms grid-to-backup transfer, 100% three-phase unbalanced load
- Co-engineered, supplied and supported in Australia by AERL
Resources and documentation
Access technical specifications, installation guides, and certification documents
Showing 6 resources
All-In-One – Datasheet
Technical specifications and performance data for the All-In-One commercial all-in-one energy storage system.
All-In-One – User Manual
Installation, wiring, commissioning, maintenance and troubleshooting for the All-In-One commercial energy storage system (25–50 kW · 64.3–112.5 kWh).
All-In-One – Quick Start Guide
The essential steps to install, connect and start up the All-In-One: key values, anchoring, wiring, start-up sequence and IntegHub app set-up.
All-In-One – Paralleling & Generator Guide
Design, wiring and app set-up for parallel systems of up to ten M2HT 25–50 kW inverters (500 kW), and for adding a diesel generator with the Solinteg EDA back-up box and an ATS.
All-In-One – System Sizing Guide
Choosing and sizing an All-In-One system: inverter, battery cabinet, PV array and generator
All-In-One – Warranty
Warranty and service conditions for the All-In-One in Australia: 10-year battery and cabinet warranty (including battery performance) and 5-year inverter warranty, extendable to 10 years, provided exclusively through AERL.
Specify the All-In-One in your next commercial project
Talk to AERL's engineering team about sizing the All-In-One to your load profile, commissioning, and Australian compliance.
